OrCAD Conversion

With Quadcept, schematic data and component data used in OrCAD can be batch converted using EDIF200 format, making it is easy to share designs and make changes/modifications. Using design resources, it is easy to execute CAD transfer.


Compatible OrCAD Versions

OrCAD (Version 10)

* In some cases, versions other than the above may be converted.
In addition, depending on the customer's data creation, some conversions may not be possible. In this case, please use the Forum.



How to Do It in OrCAD (EDIF File Export)

1) Select File => Export Design from the menu in OrCAD.
2) In the EDIF tab, select CAP2EDI(Quadcept).CFG as the configuration file, and then export.


How to Do it in Quadcept
OrCAD Conversion Method
The following will explain how to convert EDIF files exported from OrCAD.

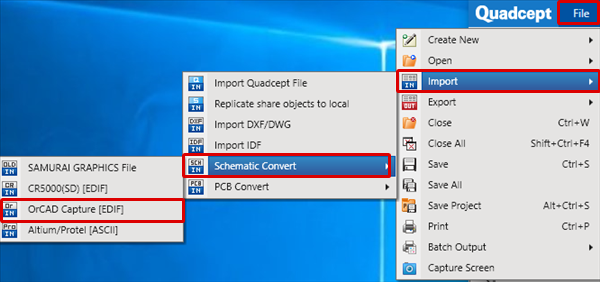

(1) [File]
Click => [Import]
=> [Schematic Convert]
=> [OrCAD (EDIF)]
  The "Open" screen will appear.
(2) Select a file, and then click "Open"
  A Progress Bar showing the progress will appear in the Status Bar.
  After completion, a message will be displayed. Click "OK".
  The converted project will be shown in the Project Window.
  Open it to confirm the schematic.

*Caution*
-At that time, the data has not yet been saved. To save it, perform the Project Save Process.
