PCB Layout CAD : Various Convenient Functions

Create Component Dimension Automatically

With Quadcept, it is possible to automatically create footprint dimensions for when creating footprints and designing PCBs.

If the automatically created dimensions are not sufficient, you can add them manually. Refer to Dimensions.

Creating a Component Dimension Automatically
This is a function for automatically creating component dimensions.
Using this function, dimensions are automatically created for component pad size, pad interval, and "Assembly" of the final outline.

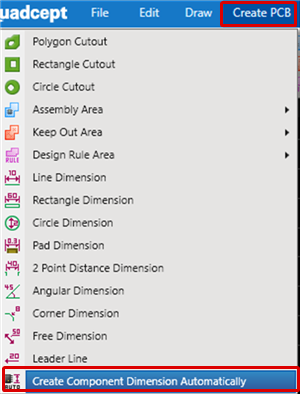

(1) Select [Create PCB]
=> [Create Component Dimension Automatically].

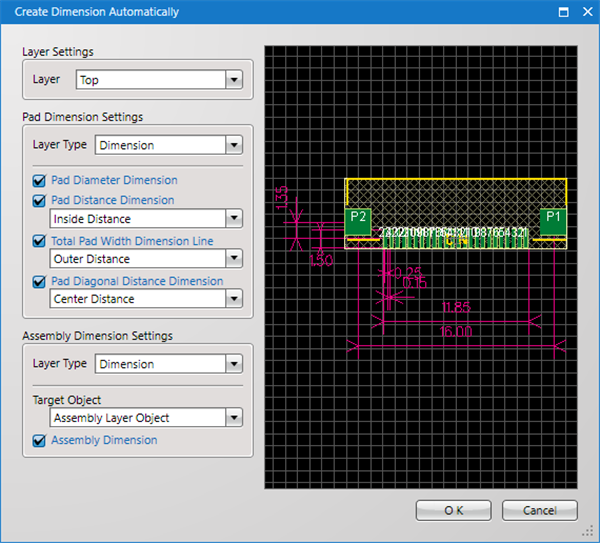

=> The "Create Dimension Automatically" screen will open.
(2) Configure each setting and then click "OK".

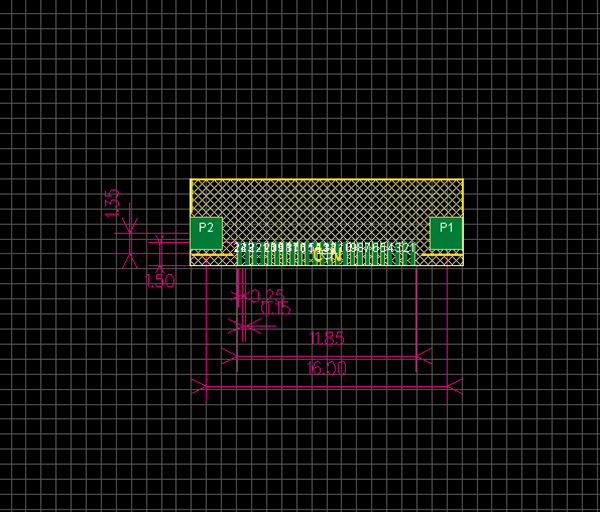

  Dimensions will be created automatically.

For more details, refer to Extra: Drawing Dimensions.

To operate on a PCB drawing, select a component first.
