About Project Settings

Project Settings allow you to configure various settings related to the whole project (Batch Output, Drawing Frame, and Net Color).

The configured contents are saved in a Project File, and they are retained even when the project is transferred.

To save Project Settings, execute Save Project.

- Confirming Project Settings from the Menu
- Opening Project Settings from the Project Window




Confirming Project Settings from the Menu
The following will explain how to confirm project settings from the Settings screen.
* You can only open this when a schematic sheet or PCB sheet is active.
  Activate a schematic sheet or PCB sheet.

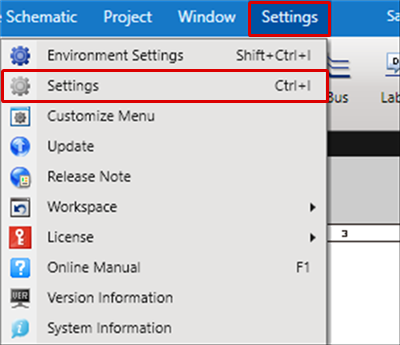

(1) Click [Settings]
=> [Settings].
(2) From the Pulldown in the top-left of the Settings, click "Project".

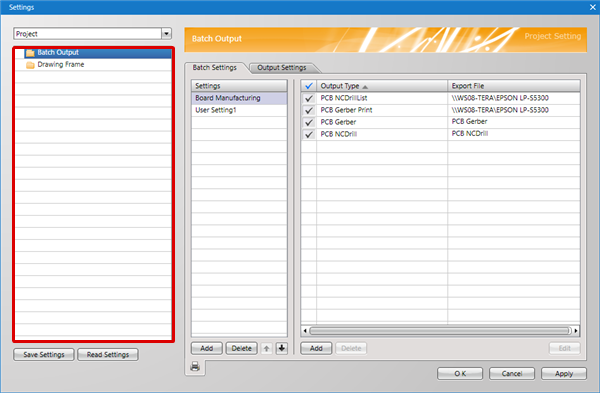

  The Project Settings screen will open.
  Click on items in the tree on the left side.




Opening Project Settings from the Project Window
The following will explain how to select projects from the Project Window and open the Project Settings from the Right Click Menu.
(1) Select a Project.
(2) Right click
=> [Settings].

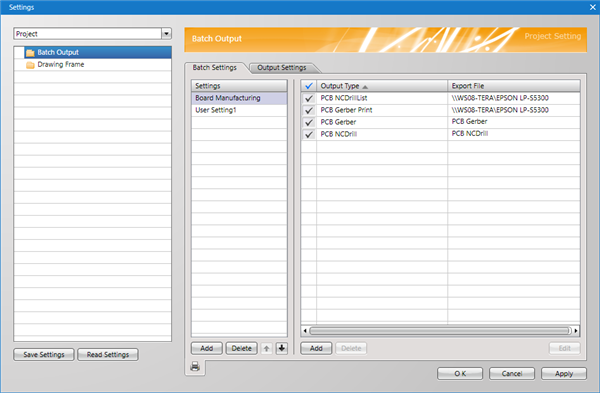

  The Project Settings screen will open.
  Click on items in the tree on the left side.
