PCB Layout CAD : Various Convenient Functions

Aligning Routes

Routes can be aligned by specifying the Route Pitch on the PCB sheet.
Because alignment can be done while automatically maintaining the Pitch Interval, it is possible to correct routes without having to redraw them, which is convenient.

Aligning Routes
The following will explain about aligning routes.
(1)

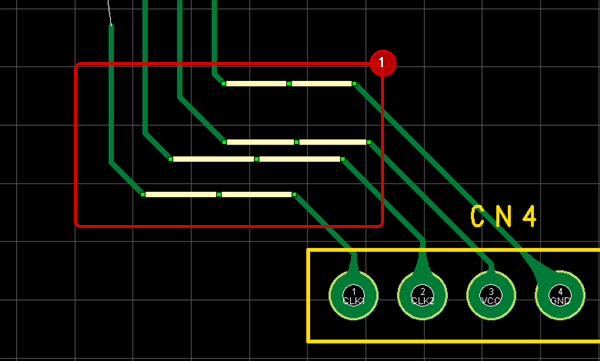

From the PCB screen, select two or more routes for alignment.

(2)

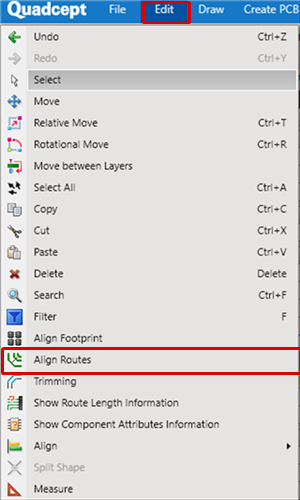

Menu
Select [Edit]
=> [Align Routes].

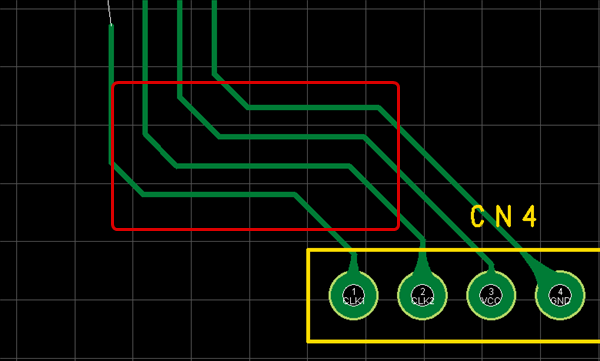

(3) Input a Route Pitch, and then click "OK".
(4) To export the displayed list to a csv file,

click [Output List].



Location

When executing Align Routes, it is possible to select the standard for the placement position.

Item Content

Justify Origin Side

Among the selected routes, alignment is performed based on the route with coordinates nearest to the Origin Point.

Center of Selection Routes

Alignment is performed based on the center of all selected routes.

Justify Opposite Side of Origin

Among the selected routes, alignment is performed based on the route with coordinates farthest from the Origin Point.
