Add Schematic Sheet

Add a schematic sheet to the currently active Project (or the selected project).

There are the following methods.

- Adding Using the Right Click Menu (Adding to a selected project.)
- Adding Using the Menu (Adding to the project of an opened document.)




Adding Using the Right Click Menu
From the Project Window, select the project you want to add, and then add the schematic sheet.
You can add it without opening the document.
(1) From the Project Window, select a project.

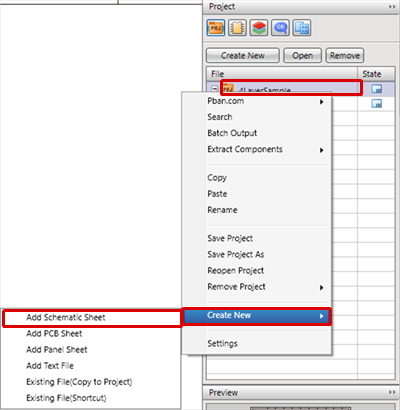

(2) Right click
=> [Create New]
=> [Add Schematic Sheet].

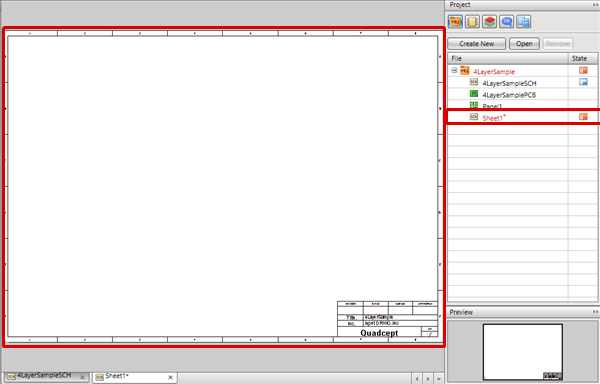

  The schematic is added to the project, and the schematic opens in the document area.




Adding Using the Menu
Add to the project of the opened document.

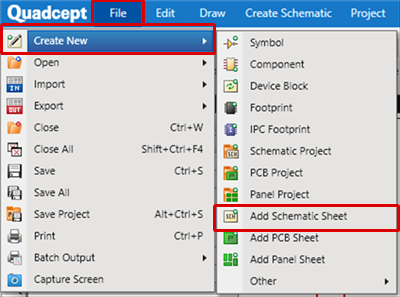

(1) Click [File]
=> [Create New]
=> [Add Schematic Sheet].
  The schematic is added to the project, and the schematic opens in the document area.
