Resize Schematic

This is a function for resizing a whole schematic.
This is convenient for making adjusting when printing.

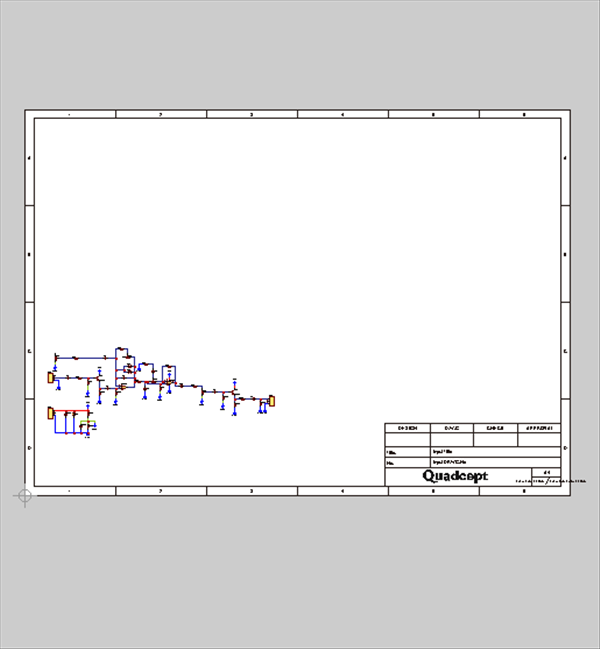

Before Changing After Changing




Resize Schematic
The following will explain how to resize a schematic.

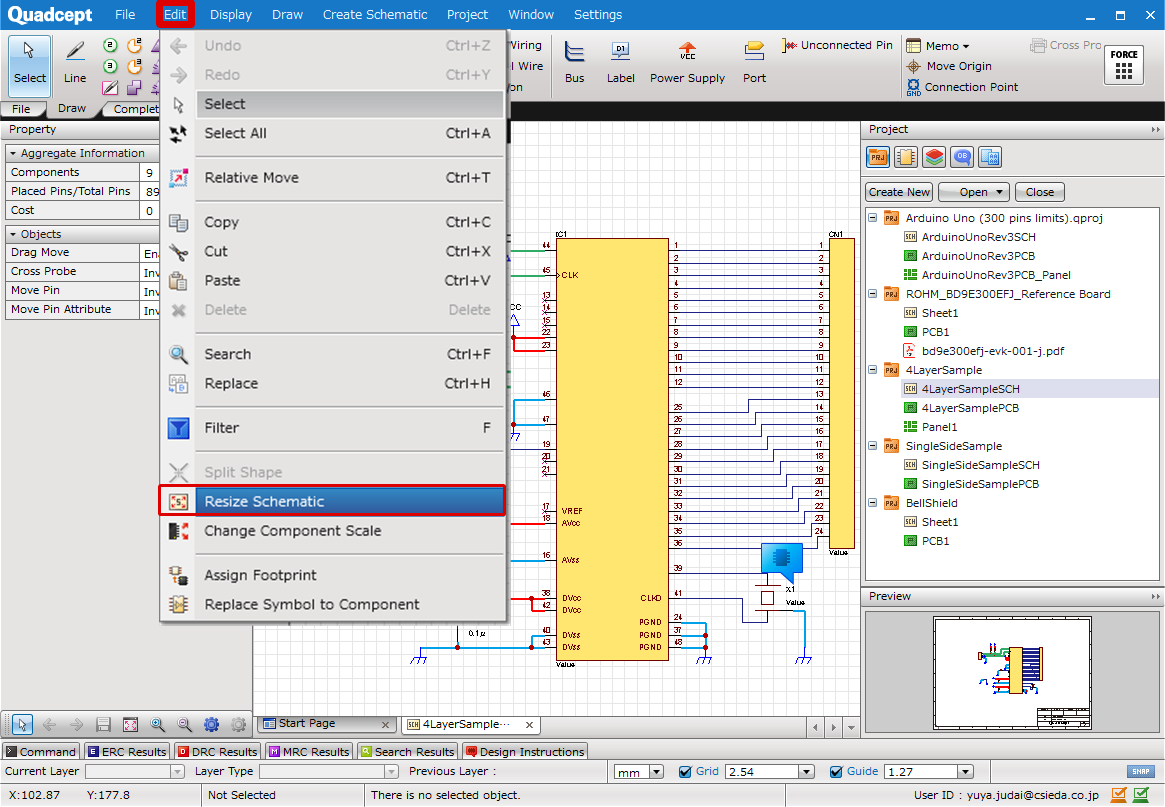

(1) Click [Edit]
=> [Resize Schematic]

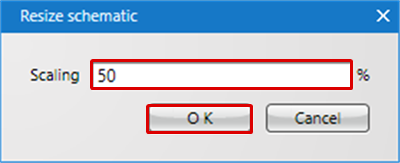

(2) Set the Scaling and then click "OK".
  The size of the schematic will be changed.
