Placing from share (Shared Component Library)

?The following will explain how to find target components from the many share components and directly place them on drawings.

Placing from share (Shared Component Library)
It is possible to place Quadcept data saved in share (Shared Component Library).
(1) Select and click [Create Schematic] =>
[Component or Symbol]
Or
Select and click [Create PCB] =>
[Component or Footprints]


(2) From the "Place" dialog,
select "share" at the top-right.

* For "Component", select from
"Manufacturer"
"Pin Count"
"Category"

and for "Symbol", "Footprint",
"Pin Count"
In this way, search targets can be narrowed down.

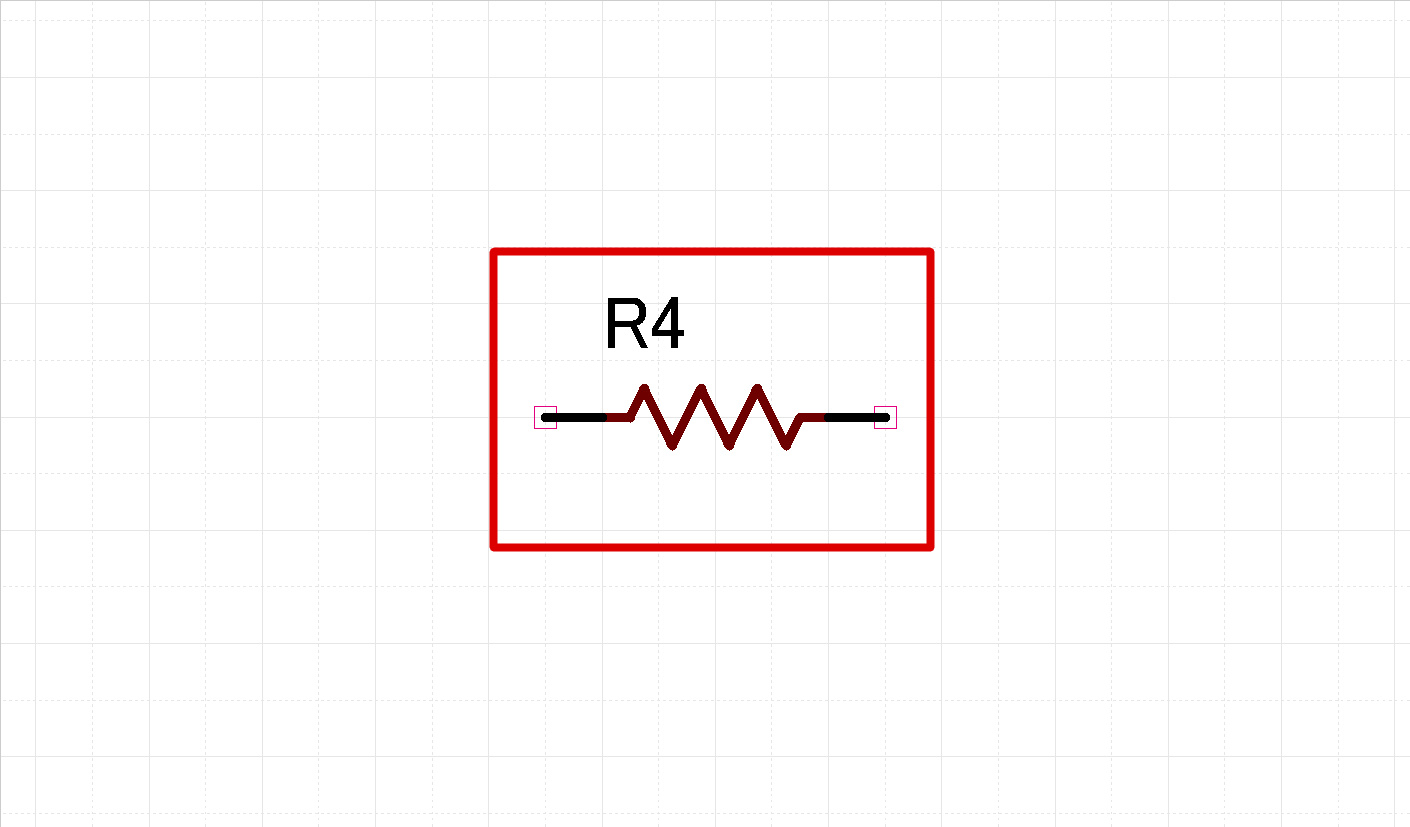

(3) Same as for local objects, it is possible to place directly.
