Quadcept : Share (Component Shared Library)

Saving from share (Share Component Library) to an Arbitrary Database

The following will explain how to acquire data from share (Share Component Library) and save it to an Arbitrary Database such as local.

- Saving Using the Menu [Replicate share objects to local]
- Saving Using [Extract Components] after Placing
- Saving by Opening and then Executing [Save As]


Replicate share objects to local
Data can be copied and saved using Menu [File] => [Import] => [Replicate share objects to local].

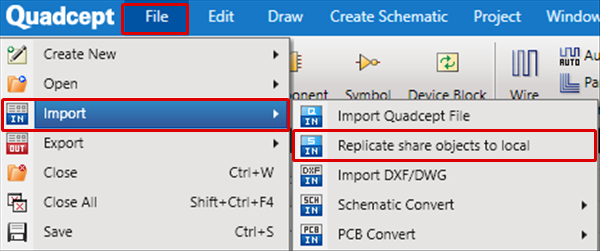

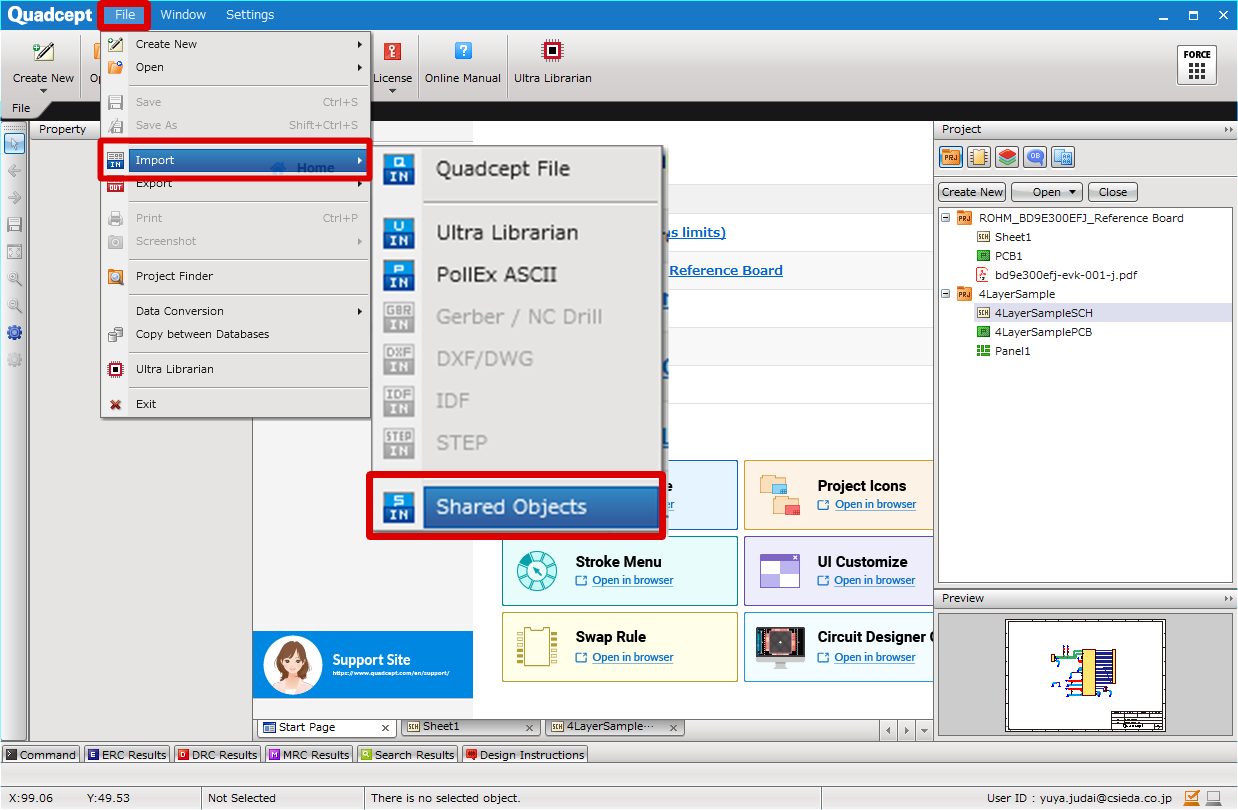

(1) Select and click [File] =>
[Import] =>
[Replicate share objects to local].

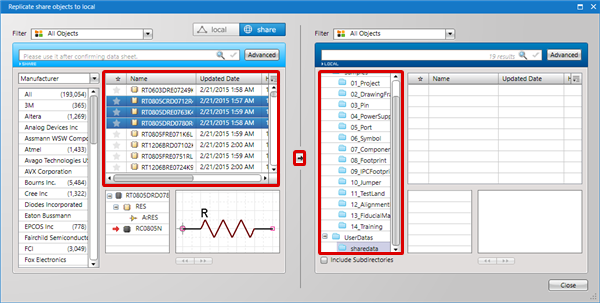

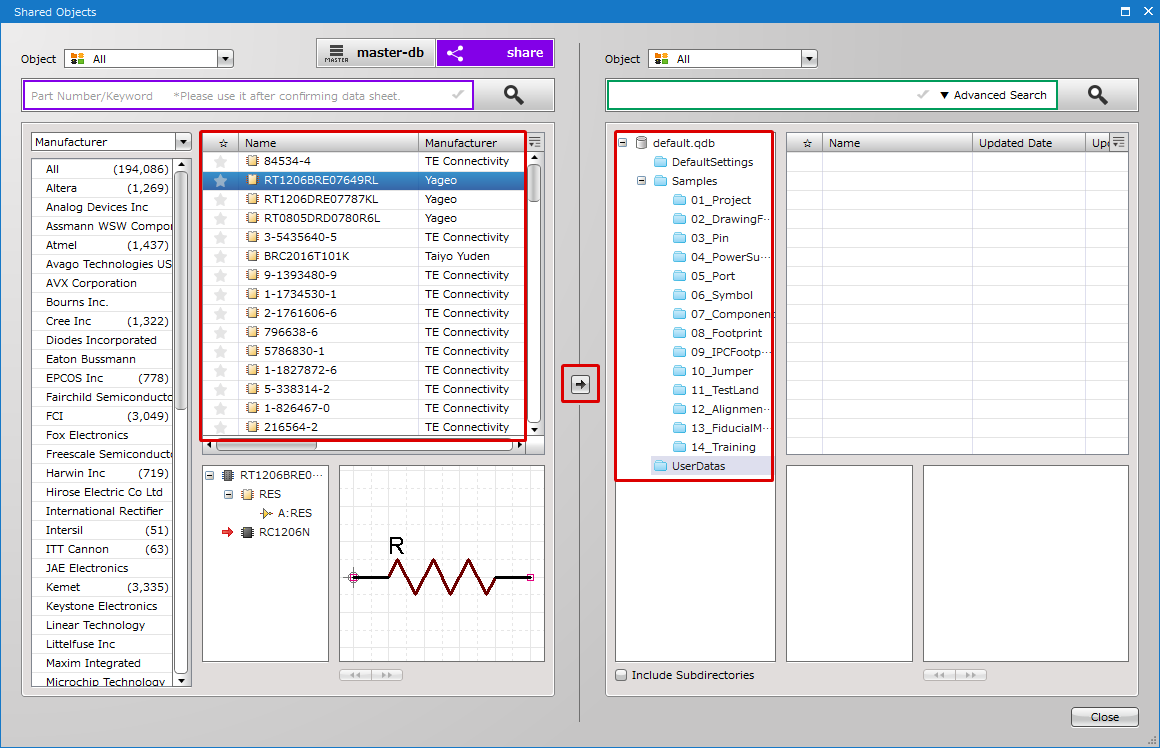

(2) Select the object that you want to import from the left side (share library), specify an arbitrary directory on the right side (database), and then click [→].

* For "All Objects" and "Component", select from
"Manufacturer"
"Pin Count"
"Category"
For "Symbol" and "Footprint", select "Pin Count"
In this way, search targets can be narrowed down.



Extract Components
Data can be copied and saved from share (Shared Component Library) after placing an object using [Extract Components].
(1) Place object from share (Shared Component Library)
(2) Extract objects placed on the sheet from share (Share Component Library) using the Extract Components function, and save it to an arbitrary database.

There are multiple extraction methods.
For more details, refer to Extract Components.




Save As
It is possible to open share (Shared Component Library) and copy/save data using [Save As].
(1) Open an object from share (Shared Component Library)



(2) Confirm the object opened from share (Shared Component Library)
(3) Click [File]
=> [Save As].

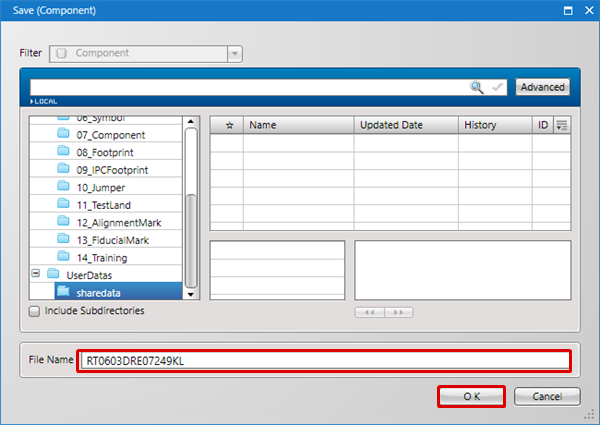

(4) Set a File Name for an arbitrary directory, and click "OK".

It is saved with the same ID as when saved to share (Shared Component Library).

For Update Components and Annotation, confirm the inside of the arbitrary database first, and if there is no relevant data, confirm share (Shared Component Library).
