Schematic Capture : Wiring and Editing

Pin-to-Pin Connections

This is a function for automatically wiring between connected pins by connecting a pin to a pin.


This is convenient when you want to wire components with a high Pin Count such as connectors and ICs, power supplies, and ports before considering placement.

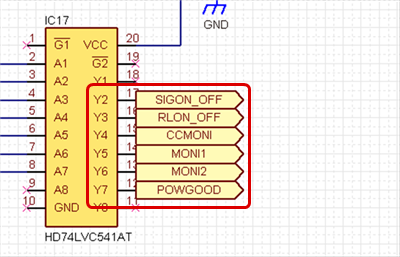

Pin-to-Pin Connections   After Moving




Method for Pin-to-Pin Connection
This is a function for connecting wires by connecting pins to pins.
  Overlapping Pins
  A pin will be connected to a pin, and the Pin Point will be hidden.
  When the Power Supply is moved, the wires will be interpolated.
