Attribute Palette Window

It is possible to copy object attributes, edit contents, and paste them.
For example, if you extract a 0.8 mm Pad and paste it to a 1.0 mm Pad, it can change to 0.8 mm while maintaining the Net Name, etc.

* By default, this is docked on the top-right of the screen.

Attribute Palette Window Icon
<What you can do>
- Extract and pasted partial object settings.




Extracting and pasting partial object settings
The following will explain how to use the Attribute Palette Window.
(1) Click "Extract" in the Attribute Palette

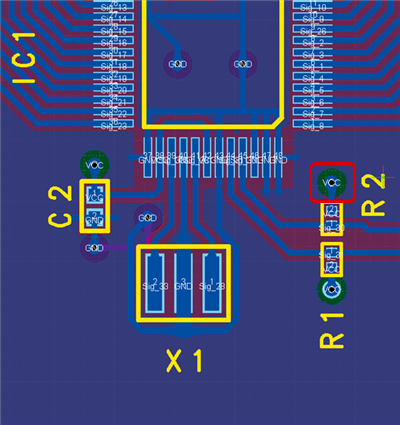

(2) Click on an Object
* Here, a "Via" is clicked.
(3) The Attribute Palette shows the extraction contents.
  Select the contents you do not want to paste and press the Delete key.
Here, "Angle=0" and "NetName = VCC" are selected and deleted.
(4) Only PadStyle remains.
(4) Click "Paste"
(5) Click the Object that you want to paste.
  The Via shape will be copied and pasted.




Extractable Items

The following shows contents that can be extracted and pasted for each object.

Route
Item                     Content

LineThickness

Line Width

NetName

Net Name



Via-Via
Item Content

PadStyle

Pad Shape (Information such as Land, Drill, and Solder Resist)

Angle

Angle

NetName

Net Name



Draw (Rectangle, Circle, Line), etc.
Item                       Content

LineThickness

Line Width

LineType

Line Style
