PCB Layout CAD : Import/Export STEP

Export STEP

STEP data (Standard for the Exchange of Product model data) is the ISO standard for 3D collaboration data.
It is possible to convert printed board design data that was designed in Quadcept to 3D data (STEP).

A STEP file can be generated either from the PCB design sheet or from the 3D document.

The STEP file export may fail or take some time, depending on the number of objects in the design. If that is the case, then disable the Export Vias option or limit the target objects to be exported in the Option section of the Export STEP dialog.

Exporting STEP Files from the PCB Design Sheet
The instructions that follow explain how to export STEP files from the PCB design sheet.

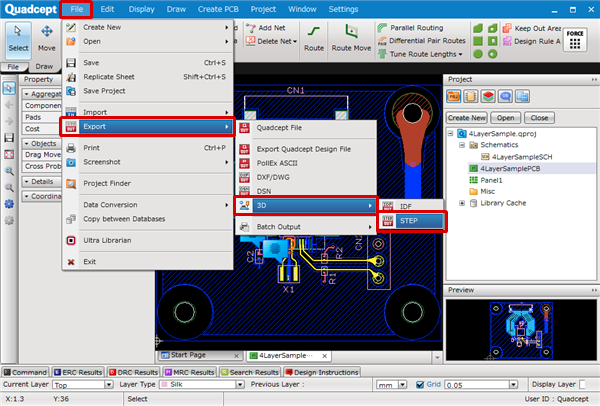

(1) Select the [File]
>> [Export]
>> [3D]
>> [STEP] command.

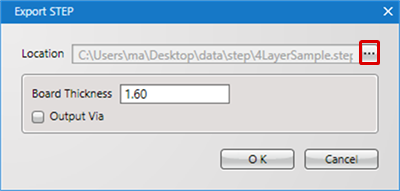

(2) Click the "OK" button.
(3) Enter the file name.
(4) Click the "Save" button.
(5) Click the "OK" button.



Exporting STEP Files from the 3D Document
The instructions that follow explains how to export STEP files from the 3D document. For details about how to display the PCB design in 3D, refer to here.

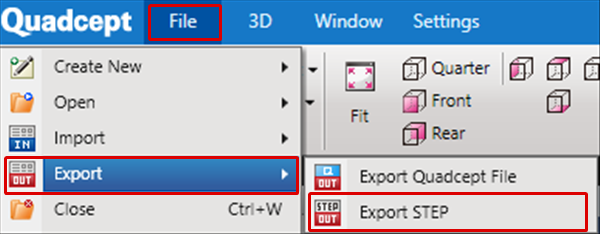

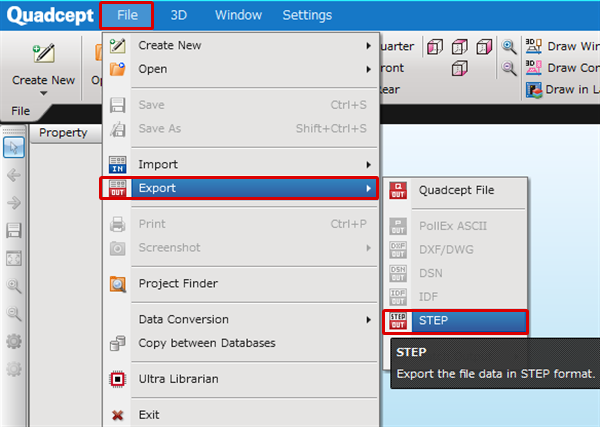

(1) Select the [File]
>> [Export]
>> [3D]
>> [STEP] command.
(2) Click the "OK" button.
(3) Enter the file name.
(4) Click the "Save" button.
(5) Click the "OK" button.
