Schematic Capture : Schematic Settings

About Schematic Settings

Schematic Settings contains settings for ERC, DRC, Color and Size for each object, and more.
Set contents are saved in the project, so there are inherited after a project is transferred.

Opening Schematic Settings
The following will explain how to configure Schematic Settings.
Schematic Settings are saved in projects, so it is necessary to first open a project schematic.

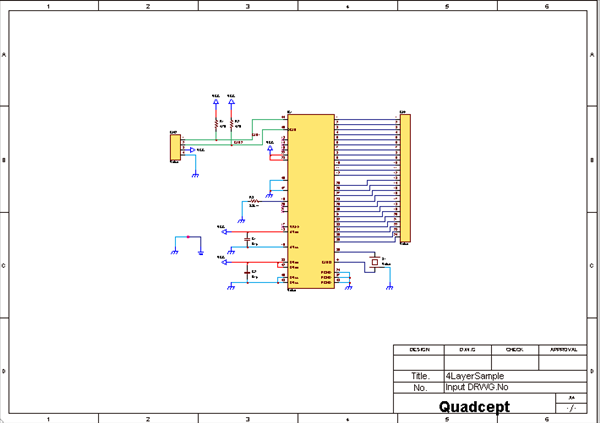

(1) Open a schematic.
  When a new schematic is created, the schematic will open automatically.

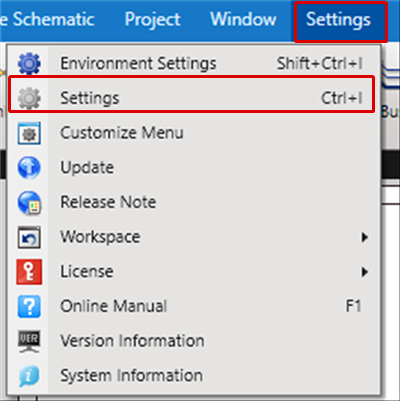

(2) Click [Settings]
=> [Settings]
  (* The Shortcut Key "Ctrl + I" is assigned.)

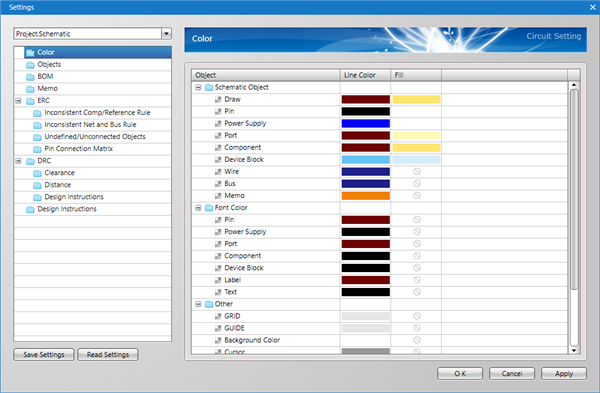

  The "Settings" dialog will open.



In the Settings dialog, each setting is displayed on the left in tree format.
Select the item you want to configure, and change the setting.
