PCB Layout CAD : Various Convenient Functions

Show Component Attribute Information

It is possible to confirm and edit Attributes in real time by toggling component (footprint) selection on the PCB.
It is also possible to select multiple components (footprints) and to edit them all.




Show Component Attribute Information
The following will explain how to use Show Component Attribute Information.

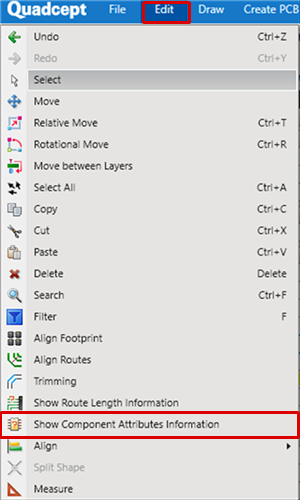

(1) Select [Edit]
=> [Show Component Attribute Information].

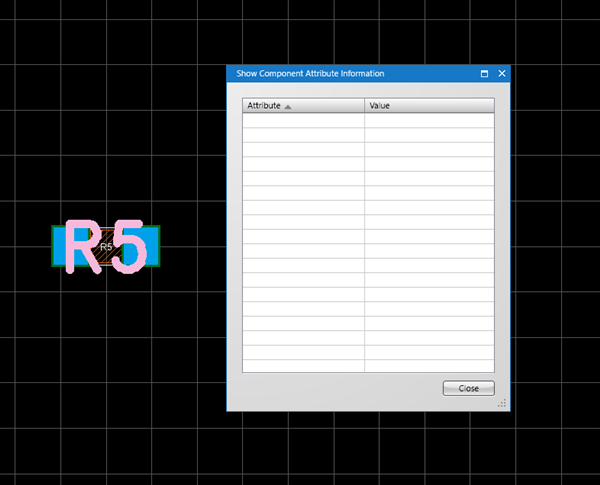

(2) On the PCB, select a component or footprint.

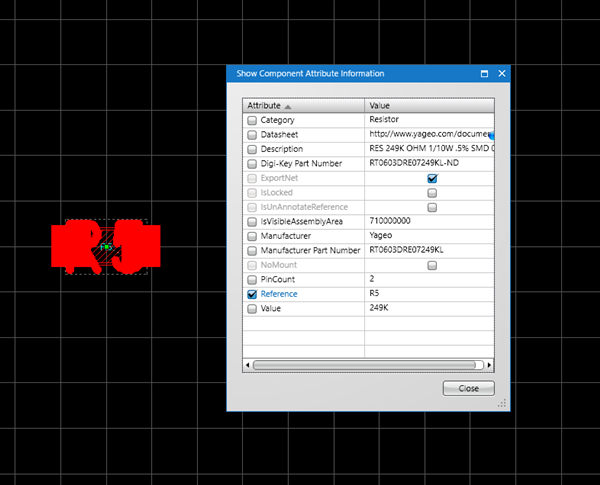

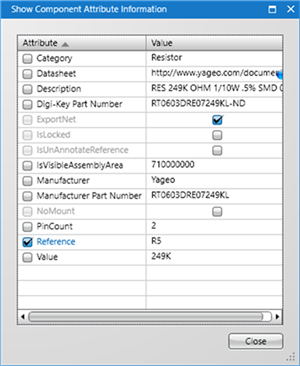

  Component attribute contents will be displayed.

It is possible to select multiple components or footprints for batch confirmation and editing.
