PCB Layout CAD : Various Convenient Functions

Exporting DSNs

With Quadcept, DSN format files can be exported from the PCB design screen.
By using a DSN file, it is possible to collaborate with various simulators such as the "DEMITAS NX", which performs EMI analysis and resonance analysis, "Signal Adviser" and "HyperLynx", which perform transmission analysis.
* Company names, product names, and service names described are the Trademark or Registered Trademark of the respective companies.

The following will explain how to export DSN files.

Exporting DSNs

The following will explain how to export a DSN file from a PCB document.

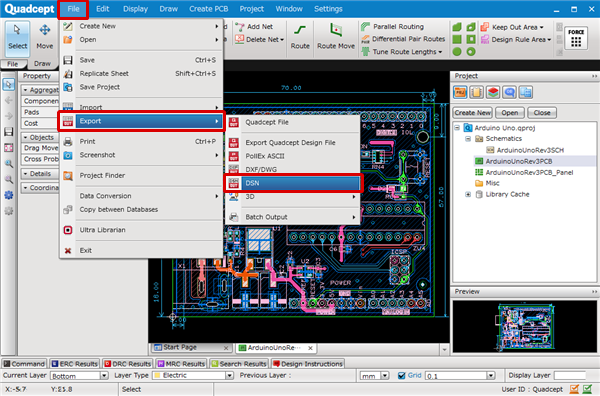

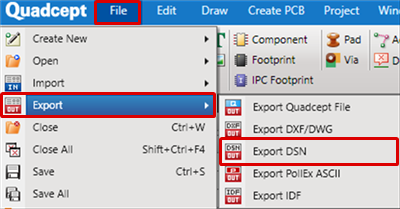

(1) Select [File]
=> [Export]
=> [Export DSN].

=> The "Location" screen will open.
(2) Input a File Name, and then click "Save".
