Starting Up Quadcept

This page explains how to launch Quadcept. You can start Quadcept Community / Quadcept Professional in the same manner.

Starting Quadcept from Shortcut Icon
Starting Quadcept from Quadcept Project File(*.qproj)

Starting Quadcept from Shortcut Icon
The following explains how to start Quadcept from the shortcut icon.

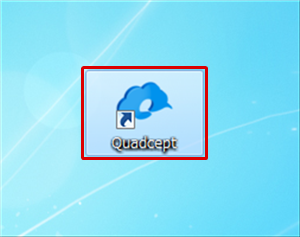

(1) After installing Quadcept, double-click the shortcut icon created on the desktop.

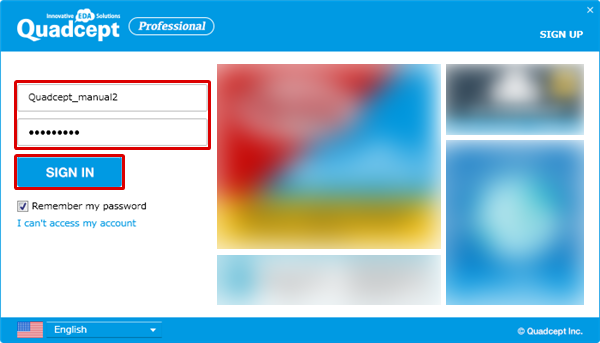

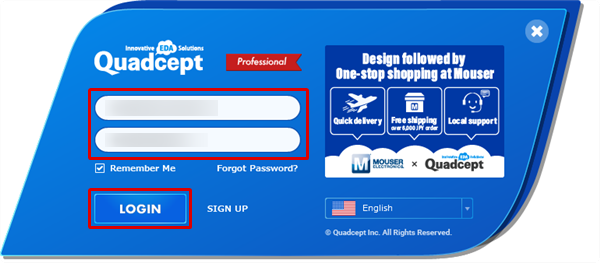

=>The Quadcept login window will appear.
(2) Enter your email address and password.
(3) Click "LOGIN".

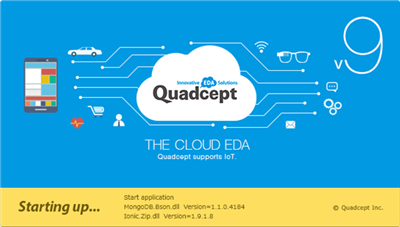

The splash window will appear.

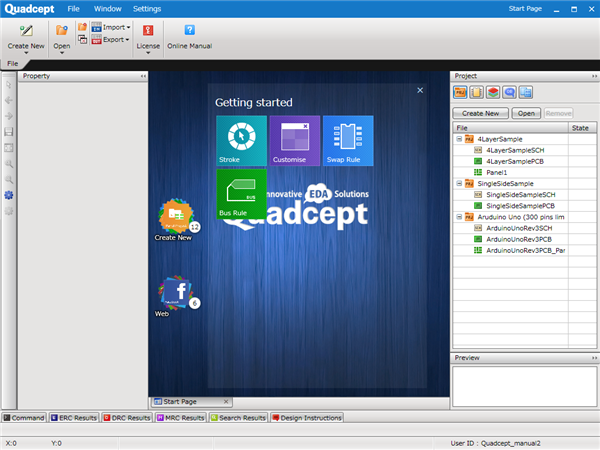

The start page for Quadcept will be shown.

If you have design data created with the Community edition, you can migrate it to the Professional edition. For details, see Data Migration from Community Version to Professional Version.

Starting Quadcept from Quadcept Project File(*.qproj)
The following explains how to start Quadcept from a Quadcept project file(*.qproj).
(1) Double-click a Quadcept project file icon.

=>The Quadcept login window will appear.
(2) Enter your email address and password.
(3) Click "LOGIN".
The splash window will appear.
The start page for Quadcept will be shown, and the selected project file will be opened on the Project Window.
