Schematic Capture : Selection Method

Select Same Components

This is a function for selecting the same components in a sheet.
This is convenient for changing the attribute values according to the component or changing the size.

Select Same Components
The following will explain how to select the same components.

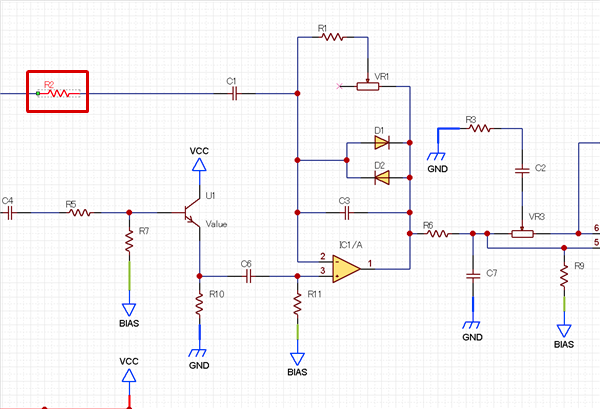

(1) Select a component.
(2) Right click
Click => [Selection Method]
=> [Select Same Components].

  The same components in a sheet can be selected.
Batch confirmation and editing can be done from the Property Window.

The same objects will be selected and highlighted across all the schematic sheets in a project.
* The values you have changed in the Property window will apply only to the objects in the active schematic sheet.
