Quadcept : Project Functions

Storing Miscellaneous Files

A Quadcept project file can store various types of files such as text files (*.txt), PDF files (*.pdf), Tiff files (*.tif), Gerber files (*.gbr) in addition to design documents. It also allows you to register shortcuts to files/folders on the Windows with the project.

New Text File
Copy File
Create Shortcut
Create Shortcut(Folder)

New Text File
The following explains how to create a text file in a project.

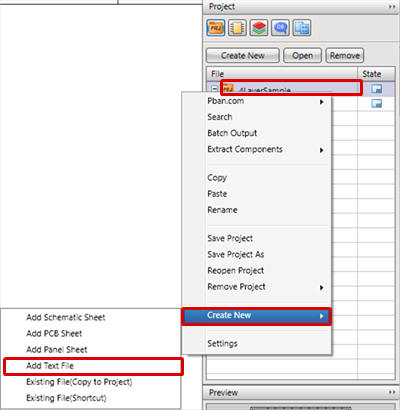

(1) Right-click on the Misc folder in a project, and then select [New Text File].

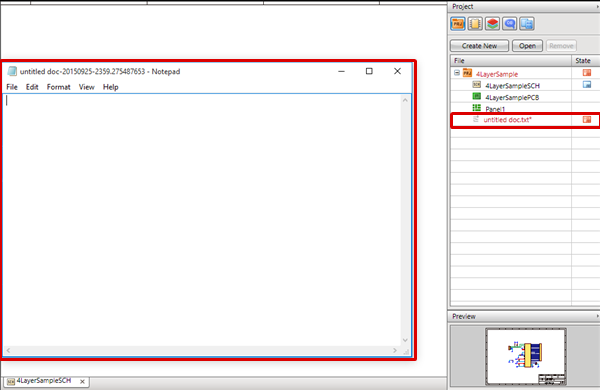

A new text file will be added and opened by a text editor.

An added file can be opened to edit by double-click or right-click >> [Edit].

Copy File
The following explains how to copy an existing file such as a text file or PDF file to a project.
(1) Right-click on the Misc folder in a project, and then select [Copy File].
(2) Select a file you wish to copy and then click "OK".
The selected file will be copied to the project.



Create Shortcut
The following explains how to register a shortcut to an existing file with a project.
(1) Right-click on the Misc folder in a project, and then select [Create Shortcut].
(2) Select a file and then click "OK".
The shortcut to the selected file will be registered with the project.



Create Shortcut(Folder)
The following explains how to register a shortcut to an existing folder with a project.
(1) Right-click on the Misc folder in a project, and then select [Create Shortcut(Folder)].
(2) Select a folder and then click "OK".
The shortcut to the selected folder will be registered with the project.
