PCB Layout CAD : Edit

Confirming and Editing Attributes

Objects have various attributes including Layers, Line Width, and Origin Points.
The following will explain how to confirm and edit attributes.

There are the following methods for confirming and editing attributes.

- Confirming and Editing from the Property Window
- Confirming and Editing by Displaying the Dialog from Show Attribute



Confirming and Editing from the Property Window
The following will explain how to confirm and edit attributes of the selected object from the Property Window.

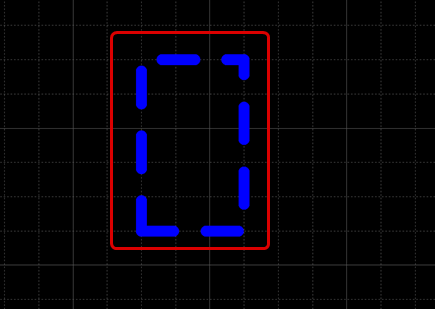

(1) Select an object.
  Attributes of the selected object will be displayed in the Property Window.
(2) Edit the attribute and then click "OK".

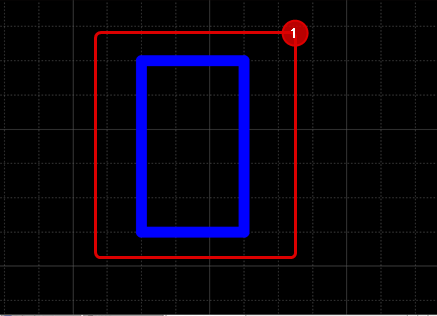

  The attribute will be changed.




Confirming and Editing by Displaying the Dialog from Show Attribute
The following will explain how to confirm and edit attributes of the selected object from the Attribute dialog.
(1) Double-click an object.
Or, select an object,
Right click
=> [Show Attribute].
(2) Edit the attribute and then click "OK".
  The attribute will be changed.
