Quadcept : Convenient Functions

Change GUIDE

GUIDE is an interval function for snapping the cursor when the cursor gets close.
GUIDE allows you to easily change the interval while designing.

You can set the value for schematics or printed circuit boards separately.

GUIDE Type



Grid Dot

Display Settings for schematics can be configured in "Cursor" of Draw (Schematic).
The defaults for schematics can be set in "GUIDE Settings" of Objects (Schematic).
Display Settings PCBs can be configured in "Cursor" of Draw (PCB).
The defaults for PCBs can be set in "GUIDE Settings" of Objects (PCB).


Changing the GUIDE

There are two ways to change the GUIDE.

- Changing Using Shortcut Keys
- Changing from the Status Bar



Changing Using Shortcut Keys
Changing Using the Dialog from the shortcut key
(1) Press the shortcut key, "N".
or

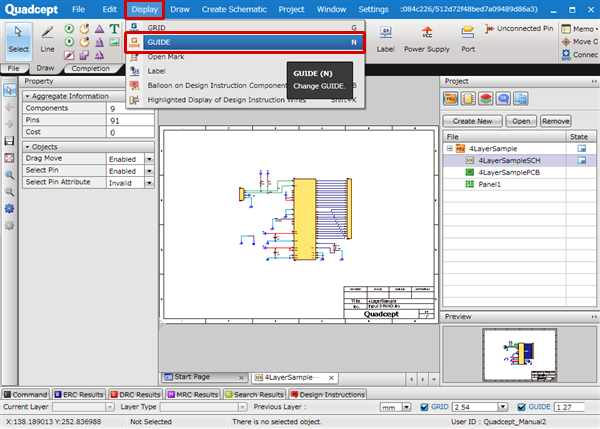

Select [Display] => [GUIDE].
(2) Input a key, or select and click "OK".
  The GUIDE interval will be changed.




Changing from the Status Bar
Changing the GUIDE Value from the Status Bar
(1) Select from the Status Bar
  The GUIDE interval will be changed.




GUIDE Width Settings

GUIDE Width Settings
This is displayed for adding when there is no GUIDE width in the list that you want to use, and for deleting unnecessary GUIDE widths.
(1) Select "GUIDE Width Settings" from GUIDE in the Status Bar
Or,
Right click [Display Options]
=> Select [Change GUIDE], and from the Change GUIDE screen, click "Edit"

Or

(2) Input the GUIDE value that you want to add and click "Add"
(3) Click "OK"
