Editing Planes

The following will explain various plane editing methods.

- Delete Plane
- Edit Outline
- Merge
- Split Plane
- Move Side
- Move Vertex

Delete Plane
The following will explain how to delete a plane.
(1) Select the plane that you want to delete.
(2) Press the "Delete" key.
  The plane will be deleted.




Edit Outline
The following will explain how to edit a plane outline.
(1) Select the plane that you want to edit.
(2) Right click
Select => [Edit Outline].
(3) Click the start point on the Outline Line where you want to edit the plane.
(4) While clicking configuration points, create the shape and click the end point on the Outline Line.
(5) Draw the plane shape.




Merge Plane
It is possible to merge multiple overlapping planes into one plane.
(1) Select the planes that you want to merge.

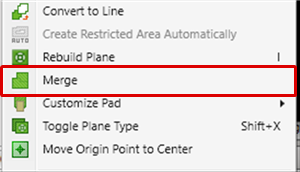

(2) Right click
Select => [Merge].

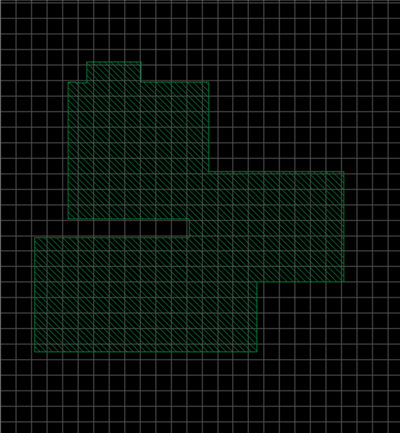

  They are merged into one plane.




Split Plane
It is possible to split planes using a Line.
(1) Select a plane.
(2) Right click
Select => [Split Plane].
(3) Use a Line to split the portion that you want to divide (click to determine the start point and double-click to determine the end point).
  The plane will be split.




Move Side
It is possible to move the sides of planes.
(1) Select a plane.
(2) Drag Move the Move Grid at the center of the side.
  The side can be moved.




Move Vertex
It is possible to move the vertex.
(1) Select a plane.
(2) Drag the Move Grid of the vertex.
  The plane vertex can be moved and the shape can be changed.
