Schematic Capture : Schematic Verification (ERC/DRC)

Correcting Errors

The following will explain how to correct errors based on ERC/DRC results.

For correcting errors, it is possible to move the screen to the relevant location of the error, to display Errors and Warnings separately using filters,
and to sort error result contents.

ERC Results DRC Results
Problem location will be indicated by an arrow. Interval between problem objects will be shown.

 Error descriptions are saved in the SCH data. Data can be transferred with the error list displayed.




With Quadcept, there are various convenient functions available for correcting errors.

Error List Display
Move Screen to the Error Location
Error List Filter
Sort Error List
Update List
Delete From List
Display Settings
Save File
Response Status
Input Comment
Approver



Error Description

About Error Descriptions, refer to ERC Settings and DRC Settings.

Functions for correcting errors
Function Name Function Description

Error List Display

Displays the ERC/DRC results as a list.

You can confirm the exact number of Errors/Warnings.
Ex.) Error: 40 (not yet: 38, approved: 2) Warning: 10 (not yet: 8, approved: 2) Delete: 3

Move Screen to the Error Location

Moves a screen and displays an error location in a design sheet when an error message is clicked.

Clicked error marks are displayed in red.

Error List Filter

By turning the "Errors" and "Warnings" buttons ON/OFF, display of the corresponding Error List is toggled between Show/Hide.

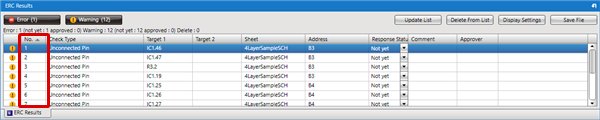

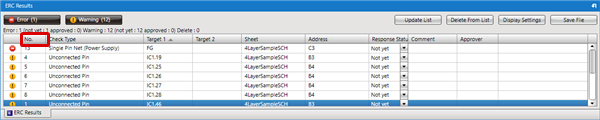

Sort Error List

Execution results can be sorted according to each item.

Update List

Updates the list to the display status set in the Display Settings.
The display is updated when the response status in the Display Setting is switched to Hide, etc.
Update List can be performed using the "F5" key.

Delete From List

Deletes selected items from the list.
When ERC/DRC is run again, items that were deleted will be shown again.
The multiple items can be selected and the menu can be run from the right-click menu as well.

Display Settings

It is possible to toggle the list between Show/Hide according to the Response Status "Not yet" and "Approved".
Toggle when you want to hide items that are "Approved" list items.

Save File

A list of the execution results can be exported in CSV format.

Response Status

Configures the Response Status settings for "Not yet" and "Approved".
The multiple items can be selected and the setting can be configured from the right-click menu as well.
For going from "Not yet" to "Approved", the Approver and Approval Date will automatically be recorded in the Approver column.

When it becomes "Approved", if an error with the same contents occurs after rechecking, the Response Status is carried over as "Approved" and it remains in the list.
For "Approved", it is possible to input the reason for approval, etc., in the Comment box.
("Approved" items remain in the list even when the Error Description is corrected. To remove it from the list, execute "Delete From List",
or return it to "Not yet", and then run DRC or MRC again.)

Comment

When the Response Status is "Approved", you can input the reason for approval, etc., as a comment.
If a check is conducted again and an error with the same contents exists, the comment is carried over and displayed while remaining "Approved".

Approver

When the Response Status is "Approved", the Approver and Approval Date will automatically be recorded.




What does it mean when the list is displayed in grey?

When an error for an item with an "Approved" Response Status is resolved, it is displayed in grey.

It remains in the list because it is approved, but the error has been resolved.
To remove the error, execute Delete From List, or return the Response Status back to "Not yet", and then run DRC or MRC again.

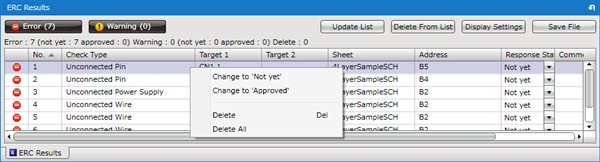

Right Click Menu

The right-click menu allows you to easily edit error results.

For the list, multiple selection is possible using the Ctrl key or Shift key.

Menu Name Content

Change to 'Not yet'

Changes the Response Status for the selected list item to "Not yet".

Change to 'Approved'

Changes the Response Status for the selected list item to "Approved".

Delete

Deletes the selected list item.

Delete All

Deletes all items on the list.
