Quadcept : Creating Components

STEP 8: Registering Swap Information

It is possible to perform Swap Pin and Group Swap when designing a PCB by registering swap information to a pin.
The following will explain the swap registration method.

Registering Swap Information
If there is no need to swap, it is possible to skip this item.

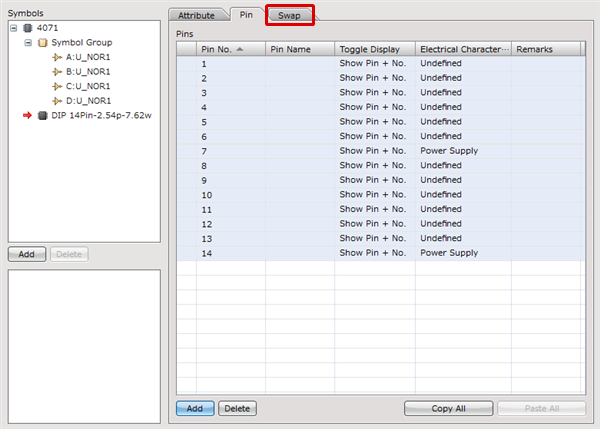

(1) Select the "Pin" tab

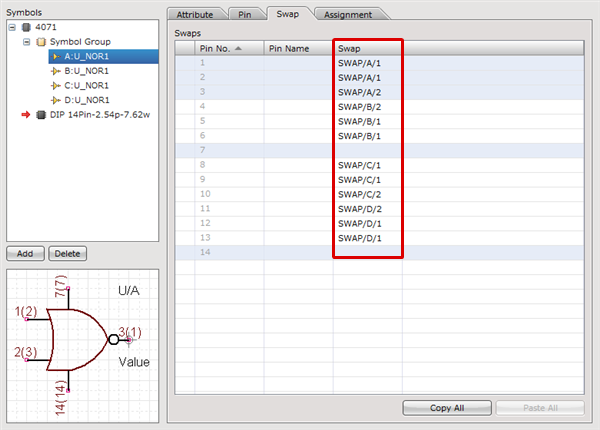

(2) Configure settings according to Swap Pin/Group Swap Rules

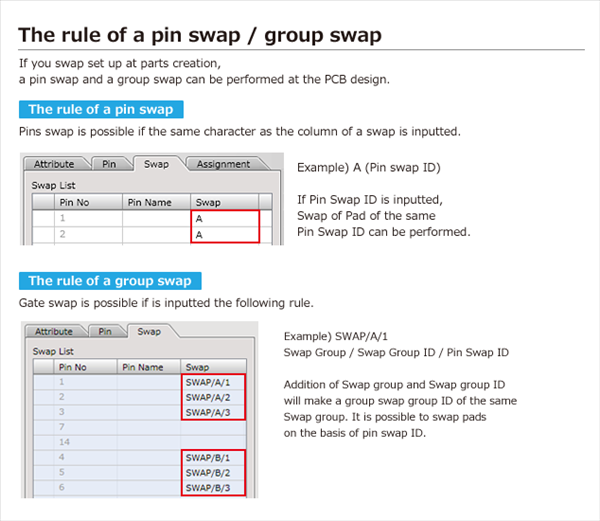

Swap Pin / Group Swap Rules



If a symbol with the same shape is registered at gate registration, swap will be set automatically.
