Schematic Capture : Draw

Drawing Lines

Lines are non-electrical straight line figures.

The following will explain each operation for drawing a line.

Selecting the Line Menu
Drawing a Line
Changing the Corner Angle
Switching the Angle
Pushback Line
Editing the Line Width
Editing Properties (Color, Line Style, etc.)
Canceling a Line
Exiting Line Mode




Selecting the Line Menu

Select [Draw] => [Line]

There are several other ways to perform this. Refer to About Executing Menus.

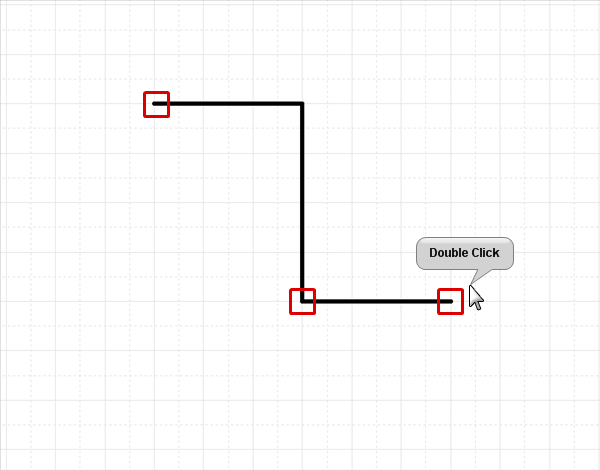

Drawing a Line

After selecting the Line Menu,

STEP 1: Click the Start Point
STEP 2: Click the corner (* When there is a corner)
STEP 3: Double-click the End Point (For electrical objects such as pins, click on it to end.)

Drawing Lines
The following is the operation for a line.
(1) Click [Draw]
=> [Line].

=> It will move to Line mode.

(2) To draw a Polygon, click the Start Point.
(3) Click the next position. (to determine the corner)
(4) Double-click the End Point.




Changing the Corner Angle

The corner angle can be changed freely.

Corner Bending Angle

45 degrees 90 degrees Free

The following is the operation for changing the corner bending angle.

Method 1: Right click, Select => [Change the Bending Angle]
Method 2: Press "S" on the keyboard
* It can also be confirmed and changed from the Property Window.




Switching the Angle

Before Switching After Switching

The following is the operation for toggling Switch Angle.

Method 1: Right click, Select => [Switch Angle]
Method 2: Press "X" on the keyboard
* It can also be confirmed and changed from the Property Window.



It is also possible to determine the pulling direction by tracking using the mouse pulling direction.

When pulling to the right side first When pulling to the bottom first




Pushback Line

When creating a line, you can pushback the corner to the previous status.

Before Pushback After Pushback

The following is the operation for executing pushback.

Method 1: Right click, Select => [Pushback]
Method 2: Press "Back" on the keyboard




Editing the Line Width

When creating a line, you can edit the line width.

Line Width 0.2 mm Line Width 1mm

The following is the operation for editing the line width.

STEP 1: Right click, Select => [Edit Line Width] => The "Line Width Settings" window will open.
           * This can also be done by pressing "W" on the keyboard.
STEP 2: Input a Line Width, and then click "OK"

It is applied to the whole line before it is determined.




Editing Properties (Color, Line Style, etc.)

It is possible to edit the Line Width, Line Style, Line Color, and Bending Angle, etc.
The following is the operation for editing.

STEP 1: Edit values in the Property Window

It is applied to the whole line before it is determined.



Canceling a Line

When creating a line, it is possible to return to the status before drawing by canceling the line being created.

Before Canceling After Canceling

The following is the operation for executing pushback.

Method 1: Right click, Select => [Cancel]
Method 2: Press "Escape" on the keyboard



Exiting Line Mode

The following is the operation for exiting Line mode.

When not creating a line,

Method 1: Right click, Select => [Cancel]
Method 2: Press "Escape" on the keyboard
