Schematic Capture : Bus Wiring

Editing Buses

The following will explain each operation of the Edit Bus Function.

Bus Auto Interpolation
Moving a Bus
Deleting a Bus
Copying a Bus
Editing Attributes
Cutting a Bus



Bus Auto Interpolation

Bus interpolation is preformed automatically according to bus movement and the movement of ports connected to the bus.
Therefore, bus connections and Net connections are maintained.

The following will explain an example of bus auto interpolation when a component is moved. (Moving a Port)

Before Bus Auto Interpolation After Bus Auto Interpolation


Moving a Bus

Drag Move
Moving From Move Mode (Right click => Click [Move Selected Objects])
Move the Move Grid ***



■ Move Pattern 1

Before Moving After Moving



■ Move Pattern 2 (When the whole bus is the move target, interpolation is not performed and the whole bus moves.)

Before Moving After Moving




Deleting a Bus

The following is the operation for deleting.

Select and press the Delete key.



Deleting a Bus
The following will explain how to delete a bus.
(1) Select the bus that you want to delete.
(2) Press the Delete key.
  The selected bus will be deleted.




Copying a Bus

STEP 1: Select the bus that you want to copy, Right click => [Copy] (This can also be done using the Shortcut Key "Ctrl + C".)
STEP 2: Right click => [Paste] The bus copied to the cursor will be displayed.
STEP 3: Click the location where you want to place it.



Editing Attributes

Select and double click
Select and right click => [Show Attribute]

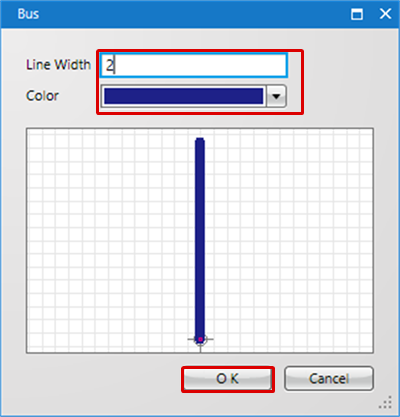

Editing Attributes
It is possible to edit attributes such as color and thickness.
(1) Select and double click
  Or
Right Click
Select => [Show Attribute].
(2) Edit the attribute and then click "OK".
  It will be changed.
* It is executed for one connection bus.

* Attributes can also be confirmed and edited from the Property Window.



Cutting a Bus

It is easy to divide a bus later.

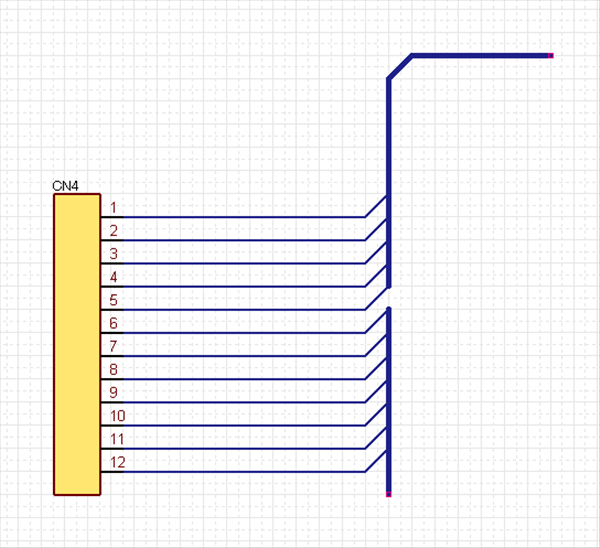

Cutting a Bus
The following will explain how to cut one connection bus into two wires.
(1) Select the bus that you want to cut, and then press the Delete key.
  Buses can easily be divided.
