As Plane Types, there are Dynamic Planes and Static Planes. The following will explain how to toggle the Plane Type.
There are the following methods for changing the Type.
- Executing from the Menu
- Executing from the Property Window
- Executing from the Plane Screen
The following will explain how to toggle the Plane Type from the menu ("Dynamic Plane => Static Plane" or "Static Plane => Dynamic Plane"). |
(1) |

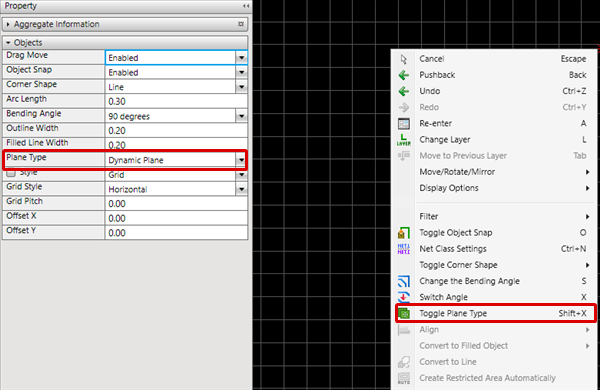

Right Click => Select [Toggle Plane Type]. |
|
![](/en/manual/pcb/images/20151009164257952-16.png) |
|
The Plane Type will be toggled. |
|
![](/en/manual/pcb/images/20151009164257953-c3.png) |
The following will explain how to toggle the Plane Type from Property ("Dynamic Plane => Static Plane" or "Static Plane => Dynamic Plane"). |
(1) |
Toggle "Plane Type" in the Property Window. |
|
![](/en/manual/pcb/images/20151009164257954-9e.png) |
The following will explain how to toggle the Plane Type from the Plane screen ("Dynamic Plane => Static Plane" or "Static Plane => Dynamic Plane"). |
(1) |
Double-click a plane. |
|
![](/en/manual/pcb/images/20151009164257954-fb.png) |
(2) |
Change the Plane Type. |
(3) |
Click "OK". |
|
![](/en/manual/pcb/images/20151009164257955-2f.png) |
