Schematic Capture : Creating Drawing Frames

Saving Drawing Frames

After you finish editing a Drawing Frame, be sure to save it.

Saving Drawing Frames
The following will explain how to save a drawing frame.

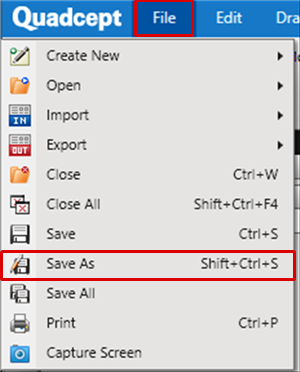

(1) Click [File]
=> [Save].
(2) Select a Directory, input the File Name, and then click "OK".

To apply the saved drawing frame to a newly created schematic, configure Project Settings - Drawing Frame.

This can also be done using Save.
